Direct-to-shard queries

PgDog has a powerful parser that can extract sharding hints directly from SQL queries. Queries that refer to a column in one of the sharded tables are sent directly to the corresponding database in the configuration.

Direct-to-shard queries are foundational to horizontal database scaling. The more queries can be routed to just one database, the more requests can be served by the entire cluster.

How it works

PgDog is using the pg_query library, which provides direct access to the native PostgreSQL parser. This allows PgDog to read and understand 100% of valid SQL queries and commands.

How PgDog works

PgDog is deployed as a proxy between Postgres shards and the application and takes care of routing queries between them. Each SQL command is different and is handled differently by our query router, as documented below.

SELECT

To route SELECT queries, the query router looks for a sharding key in the WHERE clause. For example, if your database is sharded by the user_id column, all queries that filter rows by that column, either directly or through a foreign key, can be sent to a single shard:

SELECT * FROM payments
INNER JOIN orders
  ON orders.id = payments.order_id
WHERE
  payments.user_id = $1; -- Sharding key.

Both regular queries and prepared statements are supported. So if your database driver is using placeholders instead of actual values, PgDog will extract the sharding key value from the extended protocol messages.

Supported syntax

The SELECT query can express complex filtering logic and not all of it is currently supported. The following filters in the WHERE will work:

Filter Example
Column equals to a value payments.user_id = $1
Column matches against a list payments.user_id IN ($1, $2, $3)

All other variations will be ignored and the query will be sent to all shards.

Query router improvements

This is an area of constant improvement. Check back here for updates or create an issue to request support for a particular filter you're using.

If the query has multiple sharding key filters, all of them will be extracted and converged to a set of unique shard numbers.

For example, when filtering by a list of values, e.g., WHERE user_id IN ($1, $2, $3), if all of them map to a single shard, the query will be sent to that shard only. If they map to two or more shards, it will be sent to all corresponding shards concurrently.

INSERT

Insert queries are routed using the values in the VALUES clause, for example:

INSERT INTO payments (user_id, amount) VALUES ($1, $2) RETURNING *

If the query is inserting a row into a sharded table, the query router will extract the sharding key, and route the query to the corresponding shard.

Just like for SELECT queries, both prepared statements and regular queries are supported.

Supported syntax

To correctly identify the sharding key in the VALUES clause, the INSERT statement must explicitly name the columns in the tuple. Additionally, statements must create one row at a time. Multi-tuple INSERTs are not currently supported.

For example:

INSERT INTO payments -- Missing column names.
VALUES ($1, $2), ($3, $4) -- More than one tuple.

UPDATE and DELETE

Both UPDATE and DELETE queries work identically to SELECT queries. The query router looks inside the WHERE clause for sharding keys, and routes the query to the corresponding shard.

If no WHERE clause is present, or it's filtering on a column not used for sharding, the query is sent to all shards concurrently, for example:

UPDATE users SET banned = true;

Foreign keys

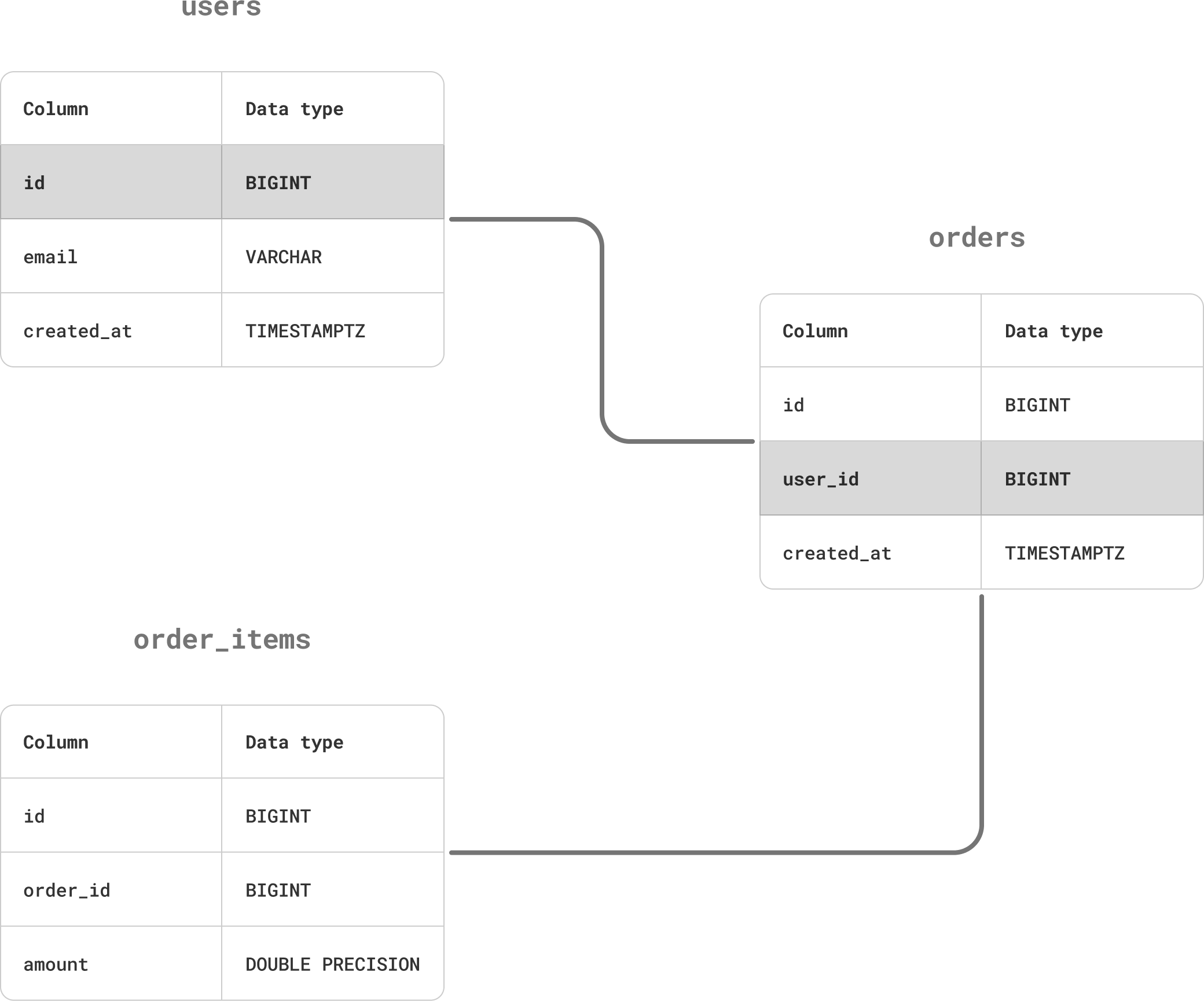

While it's best to choose a sharding column present in all tables, it is sometimes not desirable or possible to do so. For example, it's redundant to store a foreign key in a table that has a transitive relationship to another table:

How PgDog works

In this example, the order_items table has a foreign key to orders, which in turn refers to users. This makes order_items related to users as well, but it doesn't need a foreign key to that table. However, this also means that table doesn't have a sharding key.

To make querying the order_items table in a sharded database possible, the following workarounds are available:

Workaround Description
Add sharding key column Add the sharding key column to the table and backfill it with corresponding values.
Manual routing Provide sharding hints to the query router via SQL comments or SET commands.
Use joins For SELECT queries only, refer to the table as part of a join to a table that has the sharding key column. All other queries would need to use manual routing.

Adding the sharding key column is often best, because it makes writing queries a lot easier. The sharding key is usually a compact data type, like a BIGINT or a UUID, so it doesn't take up much space, and can be backfilled relatively quickly. If backfilling, make sure to do so in small batches, so as to reduce impact on database performance.

Sharding configuration

If most or all of your tables have the sharding key and the column name is the same, you can add it to pgdog.toml without specifying a table name, for example:

[[sharded_tables]]
database = "prod"
column = "user_id"
data_type = "bigint"

This will match all queries referring to all tables with the user_id column and route them to a shard accordingly.

For the table storing the actual data referred to by the foreign keys, you can make another entry in the config, this time with the table name explicitly stated:

[[sharded_tables]]
database = "prod"
name = "users"
column = "id"
data_type = "bigint"

The latter will match queries referring to the users.id column only. Together with the user_id entry, all tables that contain the sharding key will be supported by the query router for direct-to-shard queries.
